Tubular Switch Lock

TUBULAR SWITCH LOCK

  • Main body material: Zinc alloy Housing and Barrel
  • 7-pin tubular mechanism
  • Silver plated contacts and terminals
  • 4 Post style terminals; up to 3 Positions
  • Over 5,000 combinations

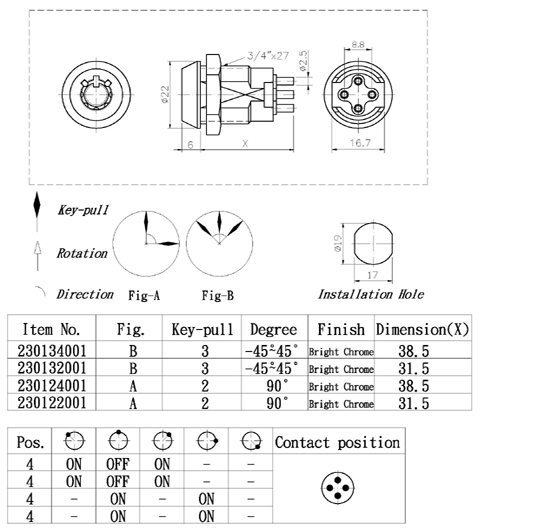

  • Hex nut mount; Fits in 19mm x 17mm mounting hole

SPECIFICATIONS:

  • Current Rating: 4A /125VAC, 2A/250VAC
  • Contact Resistance: 10 Mill-Ohms Max
  • Insulation Resistance: 500 Meg-Ohm Min (500VDC)
  • Dielectric Strength: 1500 VAC-1 Minute
  • Item No: 2301
