HIGH SECURITY TRIPLE BITTED 14 DISC TUMBLER SWITCH LOCK – MULTI POSITIONS
HIGH SECURITY TRIPLE BITTED 14 DISC TUMBLER SWITCH LOCK – MULTI POSITIONS
- Main lock material: Zinc alloy housing & barrel
- Terminals: hardened Copper Alloy with Gold plated; Soldering type
- Configurations: Up to 3 positions; Single-Pole or Double-Pole; Customized configuration also upon request
- All UL Certified
- Triple Bitted exclusive keyway
- 500 key codes available; exclusive key code upon request
SPECIFICATIONS:
- Current Rating: 4A /125VAC, 2A/250VAC
- Contact Resistance: 10 Mill-Ohms Max
- Insulation Resistance: 500 Meg-Ohm Min (500VDC)
- Dielectric Strength: 1500 VAC-1 Minute

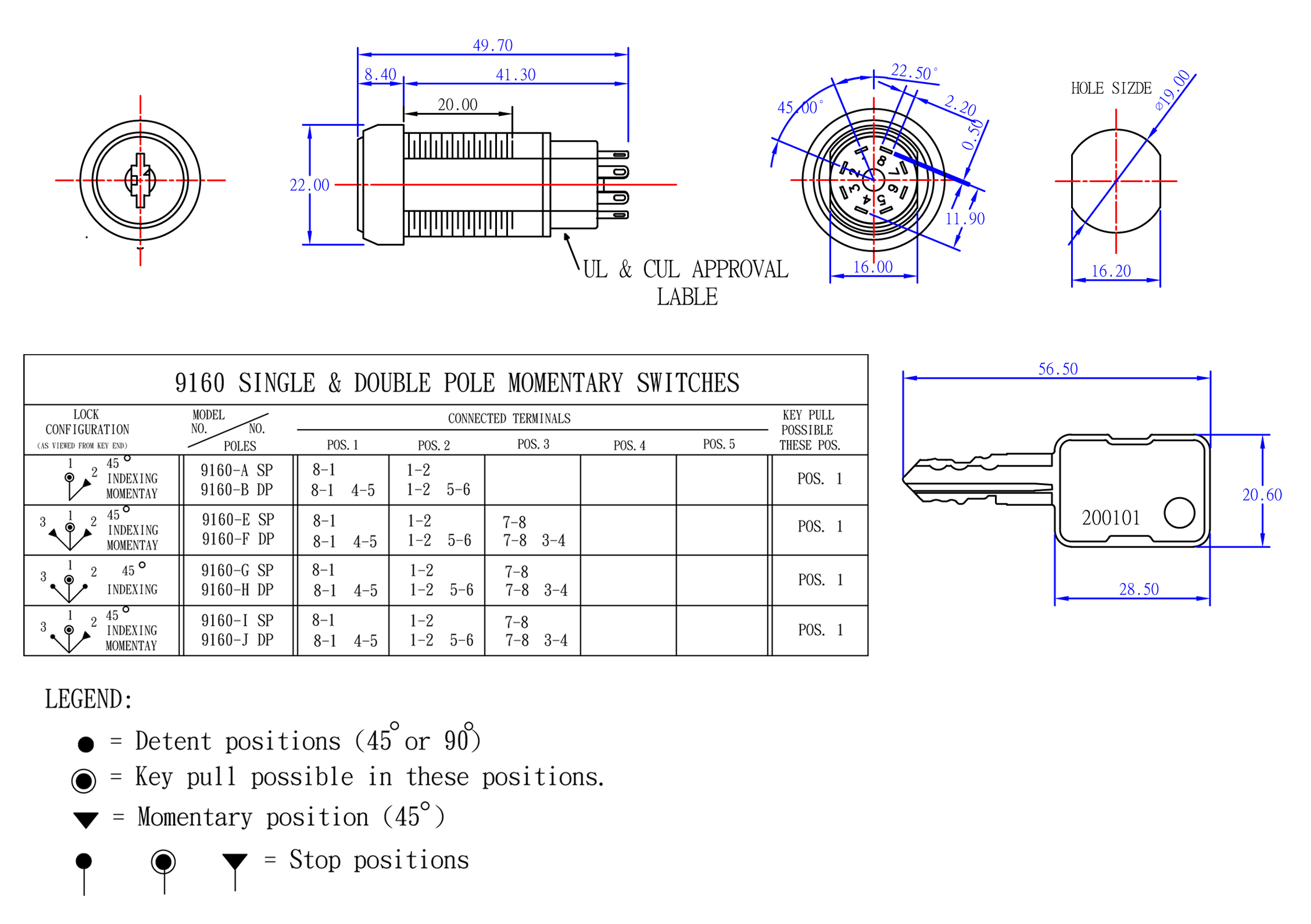

Item No: 9160
