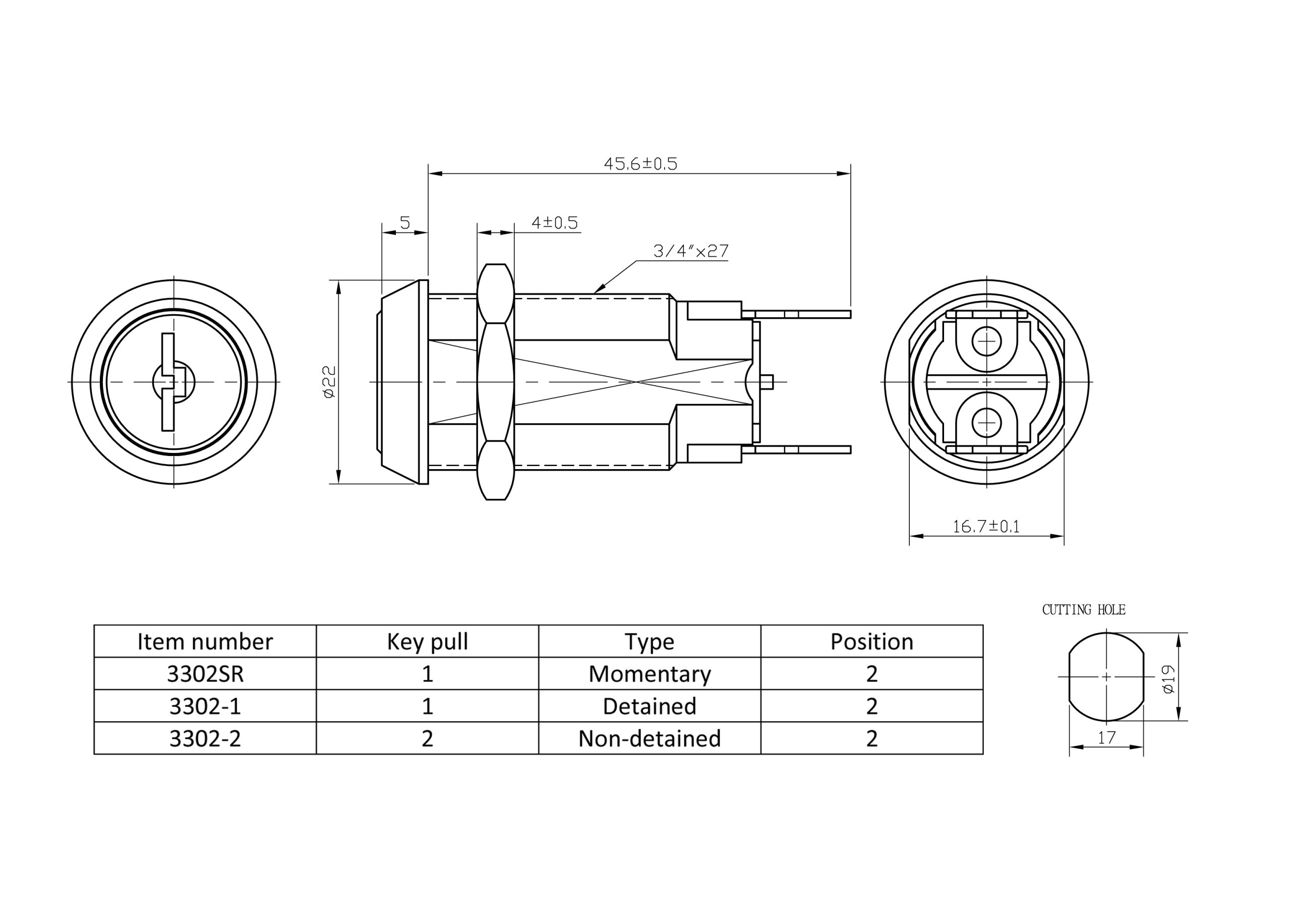

Flat Key 11 Disc Tumbler Switch Lock – 2 Spade Terminals

Flat Key 11 Disc Tumbler Switch Lock – 2 Spade Terminals

• Main lock material: Zinc alloy housing & barrel
• Bright Chrome plated; RoHS compliant
• 2 Brass terminals; 2 Positions
• Configurations: Momentary/Key Detained/Key Non-Detained
• UL version available upon specification
• 10 key codes available; new exclusive key code upon request

SPECIFICATION:

• Current Rating: 4A 125VAC, 2A 250VAC
• Contact Resistance: 10 Milli-Ohms Max.
• Insulation Resistance: 500 Meg-Ohms Min
• Dielectric Strength: 1500VAC 1 minute

• Add to Inquiry Cart

Item No: 3302
