Flat Key Wafer Switch Lock

Flat Key Wafer Switch Lock

  • Main body material: Zinc alloy Housing & Barrel
  • Gold plated contacts & terminals; soldering type
  • 5-Wafer mechanism; 60 key combinations or all key alike
  • Reversible keyway

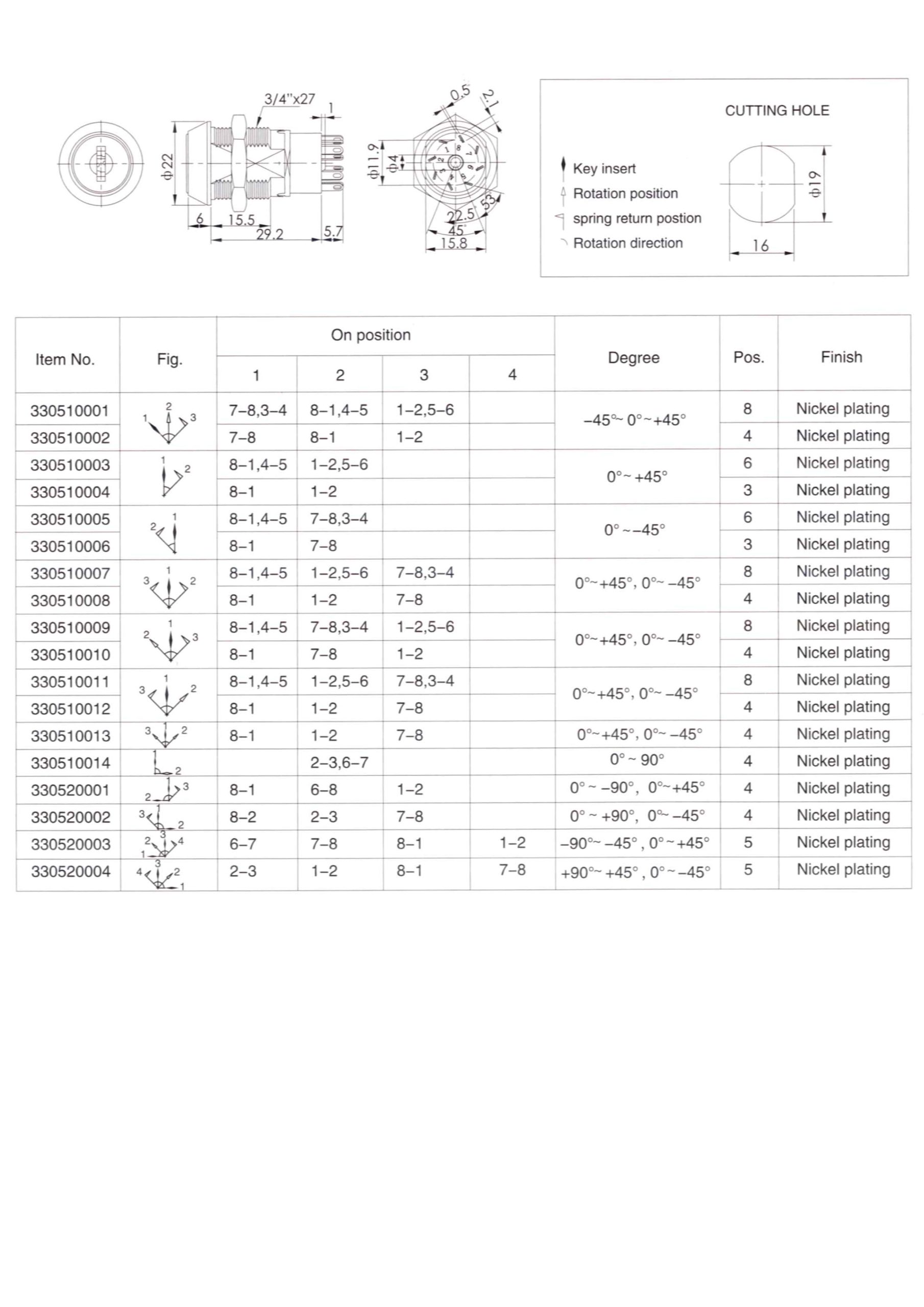

  • Up to 8 terminals; various Configurations/Positions upon customer’s requests
  • Special terminal positions layout creates more space between each terminal
  • Hex nut mount; fits in 19mm x 16mm panel hole

SPECIFICATIONS:

  • Current Rating: 4A /125VAC, 2A/250VAC
  • Contact Resistance: 10 Mill-Ohms Max
  • Insulation Resistance: 500 Meg-Ohm Min (500VDC)
  • Dielectric Strength: 1500 VAC-1 Minute
  • Item No: 3305
